Description

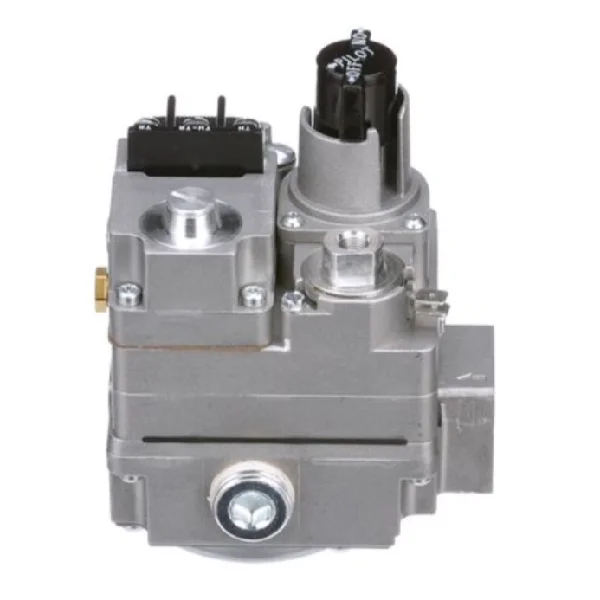

Emerson 36C03-433 36C Series Gas Valves

Features:

• Line Interrupter styles use standard 30 mV Thermocouples.
• Straight through design with side taps
• Inlet/outlet reducer bushings
• Mounting position upright, or 0° to 90°From upright in any direction.
• CSA approved

Specifications:

• Voltage – 24 Vac 60 Hz
• Opening Style- 1 – Stage Fast Opening
• Pipe Size
• Regulator Setting – 3.5″
• Regulator Adjustment Range – 2.5”-5.0”, Nat. Gas
• Regulator Adjustment Range – 7.5”-12.0”, LP Gas
• LP Conversion Kit Included – Yes
• Reducer Bushing Kit – Yes
• Flow Direction – Straight Through
• Side Taps – Yes
• Inlet/Outlet Pressure Tap – Yes/Yes
• Standing Pilot with Line Interrupter – Yes
• HSI/DSI – No
• Intermittent/Proven Pilot – No
