Description
[shortdesc]
| Operation Mode | Manual |
| Voltage | 110/220V, Single Phase (Dual Voltage) |
| Horse Power | 2 HP |
| MPN | NK2-15 |
[/shortdesc]
Product

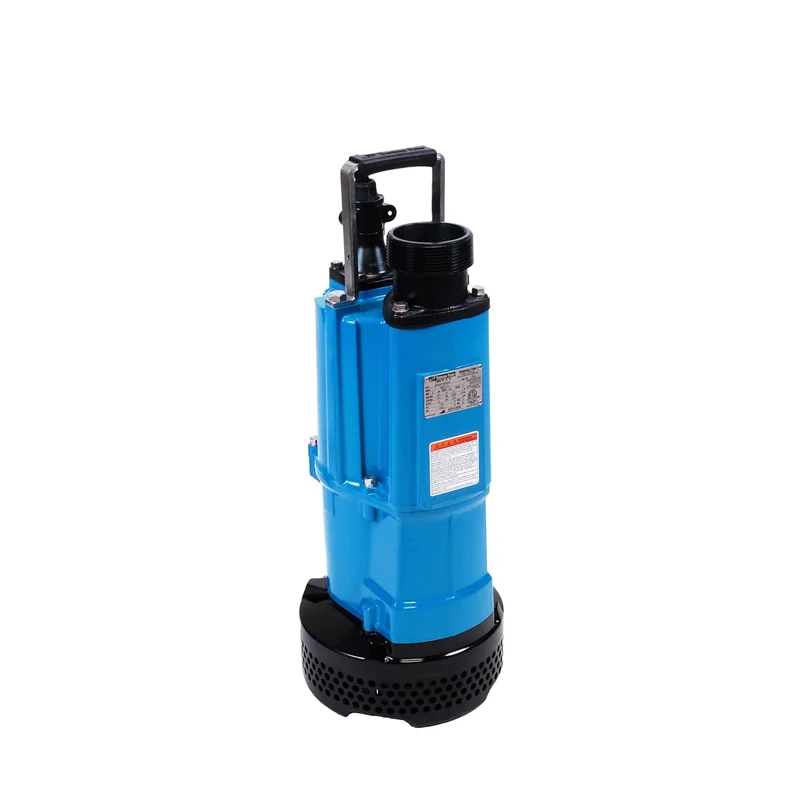

The TSURUMI NK2-15 is a robust semi-vortex submersible pump engineered for efficient dewatering in residential, commercial, and construction site applications. With its heavy-duty cast iron construction, urethane-coated components, and dual mechanical seals, the NK2-15 offers exceptional durability and reliability. Featuring a top discharge, flow-through design for low water level operation and a compact, portable build, this pump is ideal for heavy-duty drainage, sediment removal, and handling abrasive solids.
Top Features
- Semi-Vortex Design: Effectively handles solids up to 0.334” (8.5 mm) while preventing clogging.
- Durable and Efficient: Cast iron pump casing and high-chrome iron impeller for wear resistance.
- Thermal Protection: Built-in thermal and amperage sensing protector prevents motor failure.
- Heavy-Duty Motor: Air-filled copper motor with class B insulation for reliable, continuous operation.
- Sand Kit Compatibility: Optional sand kit suspends abrasive particles to prevent sand lock and improve performance.
| Category | Details |
|---|---|
| Model | NK2-15 |
| Type | Semi-Vortex Dewatering Pump |
| Horsepower | 2 HP (1.5 kW) |
| Capacity | 55.5 – 211 GPM (0.21 – 0.80 m³/min) |
| Total Head | 34.4 – 85.0 ft (10.5 – 25.91 m) |
| Solids Handling Size | 0.334″ (8.5 mm) |
| Maximum Water Temperature | 104°F (40°C) |
| Pump Casing | Butadiene Rubber + Natural Rubber / Cast Iron |
| Impeller | Ductile Cast Iron |
| Shaft | 420 Stainless Steel |
| Mechanical Seals | Silicon Carbide |
| Voltage | 110/220V, Single Phase (Dual Voltage) |
| Motor Type | Air-Filled, 3600 RPM |
| Insulation Class | Class B |
| Thermal Protection | Built-in Thermal and Amperage Protector |
| Discharge Size | 3” NPT (80 mm) |
| Dimensions (L x W x H) | 9 7/16” x 7 3/8” x 21 7/8” |
| Weight | 63.5 lbs (28.8 kg) |
| Power Cable | 32 ft Submersible Power Cable |
| Optional Accessories |
|
===
Info & Guides
| User Manual | Download |
| Specification Sheet | Download |
| Part List | Download |
