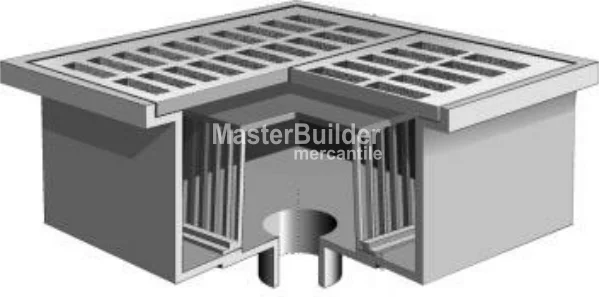

Zurn Z665 12″ Modular Cast Iron Trench Drain (Z / ZB / ZN Options)
Product Overview
The Zurn Z665 12″ Wide Modular Trench Drain is a heavy-duty drainage solution ideal for commercial and industrial environments. Featuring a Dura-Coated cast iron deep sump body, integral seepage pan, and a removable slotted grate, this system provides reliable drainage performance and easy expandability across long trench runs.
Features & Benefits
- Heavy-duty Dura-Coated cast iron construction
- Modular design for long drainage runs
- Optional tops: cast iron, polished bronze, or polished stainless steel
- Deep sump body improves flow and reduces maintenance
- Multiple outlet sizes and configurations available
- Compatible with heel-proof grates, sediment buckets, and other accessories
Specifications
- Body Width: 12″ (305 mm)
- Body Material: Dura-Coated cast iron
- Grate Type: Heavy-duty slotted grate
- Finishes: Z665 (cast iron), ZB665 (bronze top), ZN665 (stainless top)
- Connection Sizes: 2″, 3″, 4″, 5″, 6″
- Outlet Types: Inside Caulk, Inside Gasket, Neo-Loc
- Grate Open Area: 35 in²
- Approx. Weight: 100–110 lbs depending on outlet size
Installation Tips
- Ensure the trench drain is level before pouring concrete.
- Seal outlets appropriately based on outlet type (IC, IG, NL).
- Allow for thermal expansion in long runs.
- Select heel-proof grates for public/pedestrian applications.
- Add sediment buckets in high-debris environments.
FAQs
Q: Can multiple sections be joined?
A: Yes, the Z665 is modular and designed for long continuous trench installations.
Q: What are the finish differences?
A: Z665 (cast iron), ZB665 (bronze top), ZN665 (stainless top).
Q: Are heel-proof options available?
A: Yes, for ZB and ZN models.
Q: Can I add a sediment bucket?
A: Yes, available for outlet modules using suffix –Y.
Q: Is the Z665 appropriate for heavy-duty applications?
A: Yes, the cast iron build and deep sump design make it suitable for high-load environments.
